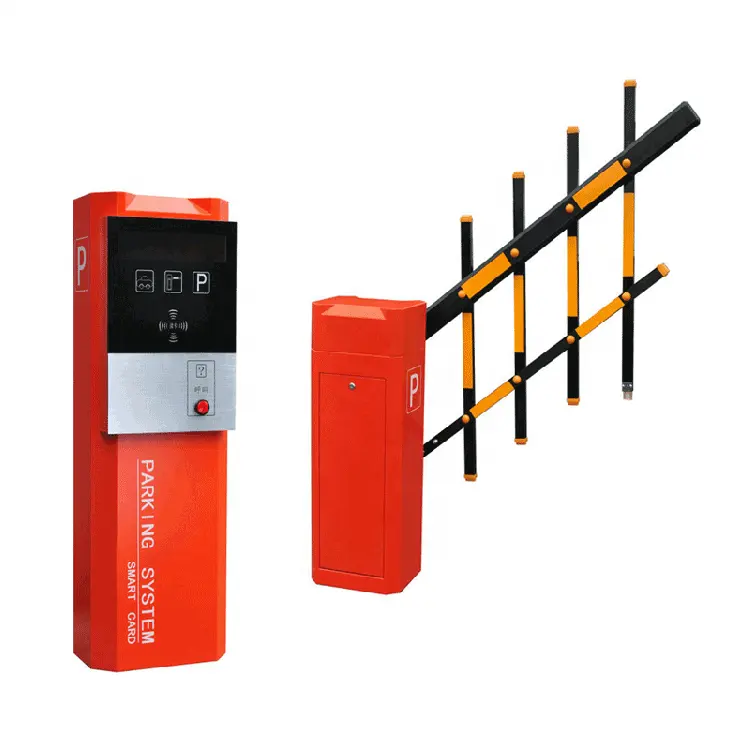

Prking Card Ticket System (BW-TCXT9000)

Parameters

Accessories Dimension

1070*340*280(mm)

Housing Material

Steel & Tempered glass

Housing Color

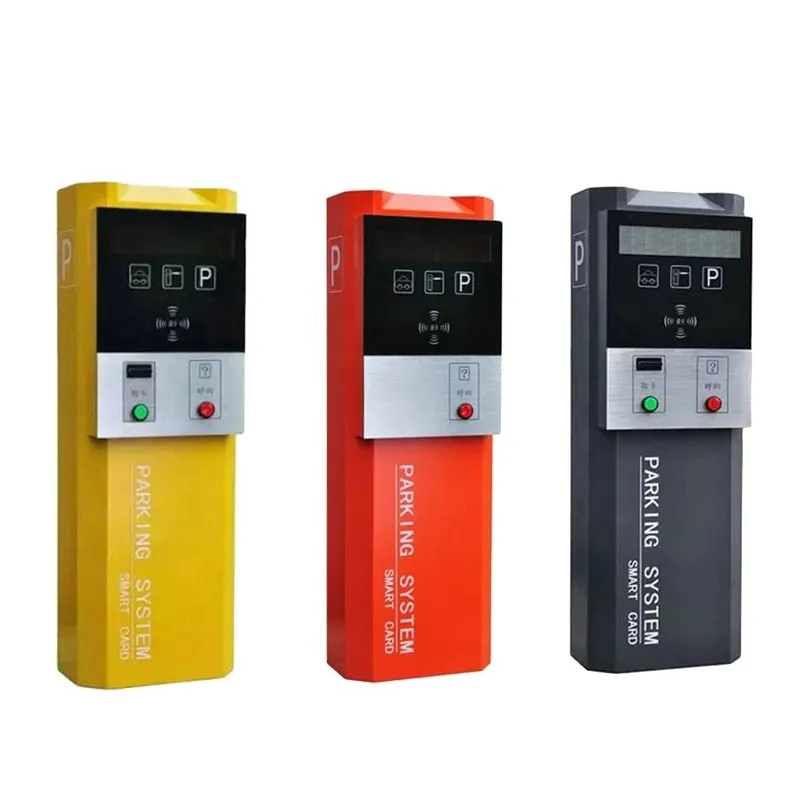

Varied

Support Built-in Reader

IC/ID/RFID, Barcode ticket

Com Mode

RS485. Rear TCP/IP

Communication distance

1200m(RS485)

Data Transmission speed

4800bps/100m

Offline storage Capacity

10000pcs (Extensible)

Working Temperature

-30°C--70°C

Working Conditional

Indoor / Outdoor

Product Description

Barcode Ticket/RFID Card parking Systemis mainly for parking lot of large traffic flow (such as large office building lot, public parking lot and shopping mall etc). This system is suitable for both temporary and monthly user parking lot. It adopts paper tickets for temporary user and it serves as the evidence of temporary user for in and out.

Features：

* Multiple network modes to realize remote data and image transmission.

* 32-bit ARM dual-core processing technology.

* Easy to install, debug and maintain.

* IC, ID, bar code, RFID available in one control board.

* Nesting function available.

* Extensible long distance read function.

* Extensible plate-number identification and auto-printing.

* Multiple charging mode, charging standards can be defined by the user. Automatic card dispenser.

* Voice Notice Available.

* Flexible system configuration, can be extended to multi-levels parking lot management system.

* Waterproof, dust-proof and rust-proof case.

* Modular structure, fully integration.
